Ford 7.3L Powerstroke Features, History, and Towing Capacity

by | Mar 18, 2023 | Ford | 0 comments

The diesel industry was revolutionized in 1994. Ford Heavy Duty pickups now come standard with International Navistar’s 7.3L Powerstroke V8 engine. Compared to the 6.9L IDI and the 7.3L Powerstroke Diesel engines that came before it, the 7.3L Powerstroke Diesel engine had far superior performance. It was also much more reliable than its successor, the 6.0L Powerstroke.

However, what made Ford’s 7.3L Powerstroke famous, and why did so many people buy these vehicles? Highlighted here are some of the essential features and characteristics of the 7.3L Powerstroke engine that continue to make these vehicles desirable decades after their first release. The history of the 7.3 and its towing capacity will also be discussed.

7.3L Powerstroke V-8 Diesel Engine

Although the Ford 7.3L Powerstroke engine isn’t quite as capable as the current diesel, its simplicity is a big reason for its widespread popularity. These engines were designed to be massive workhorses that could function for thousands of miles without experiencing any issues.

The T444E rebranded the 7.3L Powerstroke engine initially designed for use in medium-duty vehicles. While there were some external changes, most of the internals remained the same. This is a significant benefit because this motor is “overbuilt” for a consumer vehicle. The 5.9L Cummins diesel, designed for towing massive loads and agricultural work, offers comparable benefits. This engine’s specifications and layout highlight the 7.3L Powerstroke’s reliability.

The basis of the 7.3L Powerstroke is a cast-iron frame and cylinder head. These qualities provide dependability and longevity. The cylinder heads are connected to the engine block using six bolts per cylinder. The clamping force of this design is far more potent than that of the 7.3L IDI Diesel or the 6.0L Powerstroke, which superseded the 7.3L Powerstroke.

The 7.3L Powerstroke Is Well Regarded As Being Very Dependable.

You can count on the 7.3L Powerstroke to always perform reliably. It’s so dependable that even Cummins and Duramax purists can’t deny the brand’s popularity. In consequence, they are now among the most sought-after diesel vehicles. To what extent is it desired?

Used 7.3L Powerstrokes with over 200,000 miles on the odometer continue to fetch prices over $10,000. That’s a lot of money for a vehicle that’s 20 years old. Nonetheless, the vast majority of individuals will tell you that they are well worth the cost. This is an excellent first diesel vehicle for low-budget buyers.

7.3 Powerstroke Engine Performance Specs

The 7.3L Powerstroke’s ease of use is often cited as a strength, yet this engine was rather revolutionary when it was first released. Direct fuel injection utilizing hydraulic, electrical unit injectors is responsible for a substantial amount of a 7.3L Powerstroke engine’s excellent performance specifications (HEUI injectors). An oil pump with high pressure and a fuel lift pump with low pressure was used with these new injectors. The fixed geometry turbocharger used in this engine is far more potent than the one used in 7.3 IDI motors. The later 7.3s were upgraded with an air-to-air intercooler to maximize the greater availability of cold, dense air and boost their performance.

How much horsepower does a 1994 7.3 Powerstroke have?

The 7.3L Diesel engine on a 1994 Ford Superduty generates 210 hp and 425 lb-ft of torque. That’s an improvement of 40 hp and 87 lb-ft over the IDI’s output. The 7.3l Powerstroke also had annual improvements that boosted performance, particularly in later generations. A 6-speed manual gearbox and a 7.3L Cummins engine produced 275 hp and 525 lb-ft of torque in late-model (2000-2003) 7.3s.

Is the 7.3 Powerstroke direct injection?

The 7.3 Powerstroke engine is distinct from its 7.3 IDI forerunner in many respects, the most notable being direct fuel injection. The acronym IDI stands for “indirect injection engine,” which is what it sounds like when used on a vehicle. These engines have a “pre-combustion” or “swirl chamber” where fuel is mixed with air before it reaches the “main” combustion chamber. Direct injection boosts power and reduces pollution in the 7.3 Powerstroke.
Direct fuel injection is not the norm for Diesel engines of this era, although it is present in the 7.3L Powerstroke engine. High-Pressure Oil Pumps (HPOPs) are used instead of traditional fuel injection pumps in the 7.3 to pressurize fuel for the injectors. This high-pressure oil pump operates on a fixed-displacement gear-driven design.
Bostech HPOP008X High Performance Oil Pump

Bostech HPOP008X High-Performance Oil Pump

The swash plate pump is standard on all 7.3-liter Diesel engines. It is the swash plate of the HPOP that controls oil flow. 7.3L Powerstroke engines produced before 1999 had a swash plate tilted at 15 degrees. Models with a 7.3L Powerstroke engine built after 1999.5 utilize a swash plate with an angle of 17 degrees. With more space for oil, later models’ motors can better handle the strain of upgraded components.

See our post on the 7.3 powerstroke oil change interval

In contrast to a standard injection pump, the HPOP in 7.3-liter Powerstroke Diesel engines does not pressurize the gasoline. An oil supply is instead sent to the injectors. Between 500 and 3000 psi, the IPR (injector pressure regulator) increases the pressure of the oil as it exits the high-pressure oil pump (HPOP). Injectors employ pressurized oil to increase fuel pressure to 21,000 psi. Here, we will go into further depth on the operation of the 7.3’s injectors.

High-Pressure Oil Pump performance degrades with time. This may cause injector starvation, decreasing performance, gas mileage, and dependability. The Adrenaline HPOP for 1996–2003 7.3L Powerstrokes is only one example of a high-performance auxiliary power unit (HPOP) that offers considerable performance upgrades above the factory unit. The benefits work for even stock trucks! Because of this, they are considered one of the finest performance upgrades for 7.3L Powerstroke engines.

HEUI Injector Operation in 7.3L Powerstroke Engine

The Hydraulic Power Operating Pump (HPOP) provides the engine oil the HEUI injectors use in the 7.3 Powerstroke Engine to trigger injection events. As the poppet valve in the engine opens, high-pressure oil may flow into the injector. The injector’s inner “plunger” is lowered by the high-pressure engine oil. When the fuel pressure reaches a certain level, the injector nozzle injects fuel into the combustion chamber.

Modulated Power Supply

While using direct fuel injection, the Power Control Module serves as the primary computer. The PCM determines when and how long electrical pulses should be transmitted to the injector solenoids, relaying that information to the IDM. These solenoids need a pulse of electricity between 100 and 120 volts to open the poppet valve, allowing fuel to be injected and pressurized inside the injectors. The Map sensor feeds information into the PCM to assess engine load and fuel requirements.

Pump Control Unit

The injector solenoids, responsible for opening the poppet valve, get power from the Injector Drive Module. The fuel is pressurized for combustion by engine oil entering the injectors at high pressure.

Faulty Injector Motor Often, defective modules are to blame for vehicles not working well. Engine misfiring, heavy smoke, difficult starting, rough idling, and poor fuel efficiency are typical signs of a faulty 7.3 IDM. Changing out the Original IDM may fix these problems and improve performance above factory settings.

A Fuel-Lifting Pump

The lift pump is a factory-installed feature that significantly enhances the performance of the 7.3L Powerstroke. But, this truck’s fuel injection technology necessitates a modest modification to the operation of the lift pump. This lift pump bypasses the injection pump entirely by delivering fuel straight to the cylinder heads, where injectors utilize it.

Regarding the 7.3L Powerstroke engine, two fuel lift pumps are utilized. The mechanical lift pump of the first generation (1994–1997) is cam-driven. There is a chassis-mounted electronic lift pump between the 1999 and 2003 models. Although any lift pump system will work well on a factory vehicle, upgrading to a more powerful or cleaner aftermarket pump can improve performance and fuel quality.

Upgraded Turbocharger with a New Fixed Geometry

The 7.3L Powerstroke has three different Fixed Geometry Turbocharger setups. The OBS versions produced between 1994.5 and 1997 had a Garrett TP38 turbocharger without a wastegate. The first OBS versions lacked an intercooler. Modifications were made to the TP38 turbocharger in 1999. An air-to-air intercooler and wastegate were installed.

The Garrett GTP38 turbocharger was introduced for 1999.5 and later vehicles. When compared to other turbocharger models, this one fared the best.

Characteristics of a 7.3L Powerstroke Engine

This article provides an in-depth look at the 7.3L Powerstroke diesel, including its features and specs. These parameters apply to 1994.5-2003 Ford Superduty pickups with a 7.3L Powerstroke engine. Below are the details based on information provided by the original equipment manufacturer.

Overview of 7.3L Powerstroke Engine’s Specifications

The 7.3L Powerstroke engine was a V-8 turbocharged diesel engine produced by Ford Motor Company and used in heavy-duty trucks. The engine was in production from 1994.5 to 2003, and during this time, it underwent several changes and improvements.

The engine had a displacement of 7.3 liters or 444 cubic inches, weighing around 920 lbs. The cast iron engine block had a bore size of 4.11 inches or 104.4 mm and a stroke size of 4.18 inches or 106.2 mm. The engine had a compression ratio of 17.5:1 and used direct injection with new hydraulic electronic unit injection (HEUI) injectors, which could produce pressures of up to 21,000 PSI.

Transmission and Additional Specifications of 7.3L Powerstroke Engine

The 7.3L Powerstroke engine was available with two different types of transmissions, depending on the year. The 1994-1998 models had either an E40D 4-speed automatic transmission or a ZF S5-47 5-speed manual transmission. On the other hand, the 1999-2003 models were equipped with either a 4R110 4-speed automatic transmission or a ZF S6-650 6-speed manual transmission.

The engine also had a valvetrain of OHV, two valves per cylinder, hydraulic lifters, and cast aluminum pistons. The engine had a coolant capacity of 32.75 quarts or 31 liters and an engine oil capacity of 15 quarts /w filter or 14.2 liters.

7.3L Powerstroke Engine Output and Reliability

The 7.3L Powerstroke engine’s output varied depending on the model year and transmission type. The earlier models produced 210 to 225 horsepower, while the later models with automatic transmissions produced up to 250 horsepower, and those with manual transmissions produced up to 275 horsepower.

The engine’s torque also varied, with earlier models producing 425 lb-ft to 450 lb-ft of torque and later models producing up to 525 lb-ft of torque with a manual transmission. These specifications made the 7.3L Powerstroke engine a popular choice among truck enthusiasts and a reliable engine for heavy-duty applications.

Variations in the 7.3L Powerstroke Engine Throughout the Years

An Overview of the 7.3L Powerstroke Engine and Its Development Throughout the Years

1994 Powerstroke Diesel Ford F-250

The Ford F-Series trucks first appeared with the 7.3L Powerstroke Diesel engine in 1994. ZF 5-Speed manual and E40D 4-Speed automatic transmissions were also options. Its powerplant generated 210 hp and 425 lb-ft of torque.

1995 Ford F-250 Powerstroke Diesel

The 7.3L Powerstroke diesel engine remained primarily unchanged for the 1995 model year.

1996 Ford F-250 Powerstroke Diesel

The 1996 model year included improved performance specifications for the 7.3L Powerstroke engine. Its diesel engine gave trucks 215 hp and 450 lb-ft.

1997 Ford F-350 Turbo Diesel Powerstroke

To lower emissions, California mandated using split-shot injectors in trucks in 1997. Code AB was used for the injectors. The engine’s output was bumped from 200 to 225 horsepower and 400 to 450 pound-feet of torque.

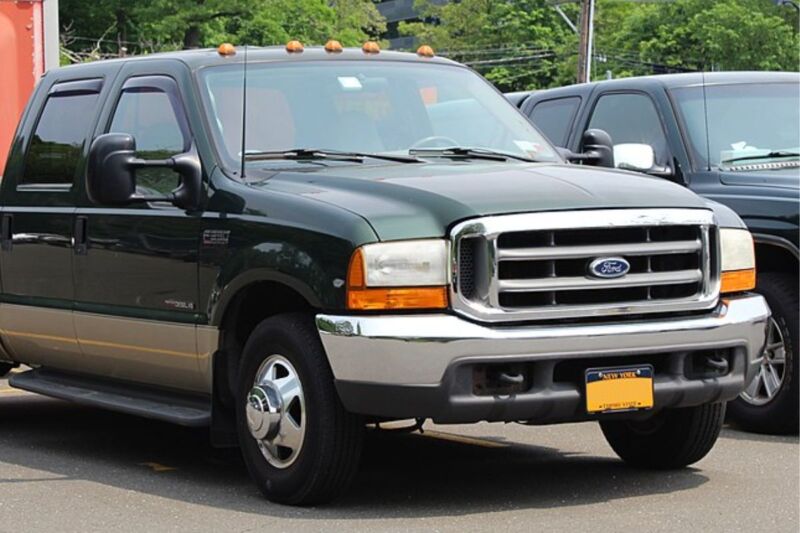

Enhancements to the 1999 Ford Super Duty 7.3L Powerstroke Diesel

The 7.3L Powerstroke Diesel engine experienced several vital improvements in 1999. Ford’s Superduty range includes the F-250, F-350, and F-450 pickup trucks. The upgrades included a new electric lift pump, a 4R110 automatic gearbox, ZF-6 speed manual transmissions, and an air-to-air intercooler. Trucks manufactured in the first half of 1999 received an upgraded TP38 turbocharger with a wastegate, while those manufactured in 1999.5 and after had a brand-new Garrett GTP38 turbocharger. Pickups manufactured after 1999 all used split-shot injectors.

2001 Ford F-250 Powerstroke Diesel

The 7.3L Powerstroke Diesel engine’s horsepower was increased thanks to a revised calibration in 2001. Models with automatic transmissions generated 250 hp and 505 lb-ft of torque, while versions with manual transmissions generated 275 hp and 525 lb-ft of torque.

2003 Ford Superduty 7.3L Powerstroke Diesel

Ford Superduty Trucks stopped using the 7.3L Powerstroke engine for the 2003 model year. Trucks had to produce fewer pollutants to meet the new regulations, and producers were racing to create vehicles with the same or more excellent capabilities. In response, Ford introduced the 6.0L Powerstroke engine for the 2003 model year.

What is the 7.3L Powerstroke Tow Capacity?

The 7.3L Powerstroke engine is known for its impressive towing capabilities. Between 1994.5 and 1997, trucks equipped with this engine had a conventional tow capacity of 10,000 lbs and a 5th wheel tow capacity of 13,500 lbs. From 1999 to 2003, these tow capacities increased to 12,500 lbs and 13,900 lbs, respectively. It is important to note that the receiver size for these trucks is 2 inches. These tow capacity numbers demonstrate the power and durability of the 7.3L Powerstroke engine, making it a popular choice for towing heavy loads.

Conclusion

The 7.3L Powerstroke engine has a rich history in Ford’s F-Series trucks. Introduced in 1994, this engine quickly gained popularity due to its power and reliability. Over the years, the 7.3L Powerstroke engine underwent various changes and improvements, such as adding an air-to-air intercooler, larger injectors, and increased horsepower and torque.

Its towing capabilities also proved impressive, with 5th wheel tow capacities reaching up to 13,900 lbs in later model years. Although newer engines eventually replaced the 7.3L Powerstroke engine due to stricter emissions standards, it remains a favorite among truck enthusiasts. It continues to be a sought-after engine for those looking for a robust and reliable towing vehicle.

The 7.3L Powerstroke engine has proven its reliability and performance over the years. Maintaining your engine is crucial for longevity, and our 7.3 Powerstroke oil change interval guide can help you keep it running smoothly. If you’re interested in other popular engine options, be sure to read our articles on the Ford Barra Engine and the 2JZ-GTE engine.

Dmitry Petrov

Dmitry Petrov is an engineer who specializes in materials science, and has a deep passion for all things related to automotive technology. He is a true motorhead at heart, and spends much of his free time tinkering with engines and studying vehicular dynamics.
