VW/Audi P1296 Fault Code – Diagnosis & Repair

by | Oct 11, 2022 | Audi, VW | 0 comments

VW/Audi Engine Cooling System Error Code P1296

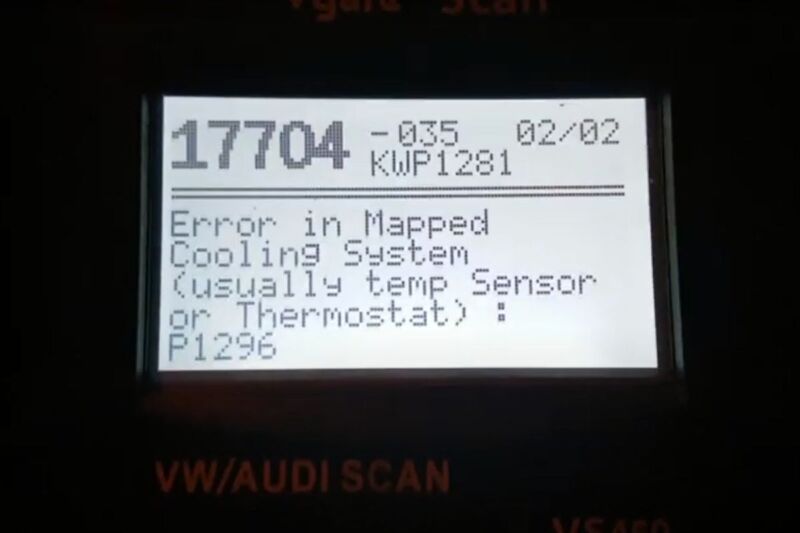

A solid rule of thumb is to utilize an OBD-II scanner if the check engine light comes on in your car. In most cases, “Engine Cooling System Malfunction” or “Error in Mapped Cooling System” will appear in conjunction with the P1296 code. This error number suggests a problem with the cooling system in your engine. The engine’s ideal temperature is reached and maintained with the help of the cooling system, which also removes surplus heat from the engine.

I have a P1296 error code on my Volkswagen or Audi; am I safe to drive?

This is a natural concern with many error messages, but if you get the P1296 engine code, you should get out of the car immediately. Engine overheating might result from a malfunctioning cooling system, including a thermostat or engine coolant temperature sensor. Possible long-term engine damage without a working cooling system.

Symptoms in a Volkswagen or Audi with the P1296 Code

  • The Vehicle’s Trouble Code Indicator Lamp (CEL) Is On
  • Radiation from a cold source illuminates (low coolant)
  • Problems starting when it’s cold
  • There has been an overheating of the engine
  • Inconsistent measurements of engine temperature
  • P1296 Volkswagen and Audi Engine Occurrences
  • Faulty ECT (engine coolant temperature) sensor
  • Faulty thermostat for the cooling system (stuck open)
  • A problem with the ECT sensor harness
  • An electrical malfunction in the ECT system

Fixing a P1296 Code on a Vw or Audi Engine

This engine code is much easier to understand than some of the others, especially when dealing with Volkswagens and Audis, where the EPC light is a common indicator of a malfunction. In most cases, a failing engine coolant sensor will cause your car to display this error. If the ETC sensor has been replaced and the error message still persists, the coolant thermostat should be checked. By then, the error should have cleared itself by itself; otherwise, it points to a problem with the ETC’s electrical wiring or circuitry.

The manuals and components are tailored to the 1.8t motor; if you plan on purchase, double-check that this engine size matches your own. Use the comments section to ask for assistance if you’re having trouble locating instructions or replacement components for a different kind of engine.

How to change an ETC sensor

As was previously mentioned, an ETC sensor failure is the most common cause of this code. If the engine coolant isn’t at the right temperature, the engine won’t run at its best, and thus an ETC sensor keeps an eye on that. Since this is a very inexpensive and simple DIY diagnostic, we recommend beginning here.

Tutorial on Changing the Thermostat

A thermostat that is malfunctioning or has already failed is the second most probable reason for this engine code. Thermostats control the flow of coolant through the radiator and its subsequent recirculation back into the engine. This is not the simplest or least expensive item to replace on your own, but you might save yourself around $300 if you do it.

Changing out an ETC’s wiring harness

If the error still persists after implementing the aforementioned measures, the wiring or current going to the ETC sensors is likely to blame. Since this is difficult to swap out on your own, you may want to consider having it done professionally.

The Final Word on P1296 Fault Code

To sum up this article, an ETC sensor or thermostat failure is most likely the reason of a P1296 code in a Volkswagen or Audi. Overheating might result in more engine damage, thus it’s not a good idea to drive on it with this code. Please let us know in the comments if you need any help finding instructions or components for a different car.
